Borescope inspection in metal casting: find hidden defects before they become problems.

Complex castings can hide burrs, voids, debris, or surface damage inside passages that are difficult to inspect directly. A borescope brings a visual view to internal areas while helping keep the component intact.

Foundry quality controlRigid and flexible scopesRemote visual inspection

Borescope inspection inside a metal casting

Why internal inspection matters

Critical surfaces can be hidden from direct view.

Metal casting makes complex parts for engines, pumps, turbines, industrial machinery, medical equipment, and many other systems. Those internal passages, cavities, and intricate shapes can also make the parts difficult to inspect.

A surface may look acceptable from the outside while conditions remain hidden inside. Depending on the component and process, defects may develop during pouring, solidification, cooling, finishing, machining, or handling.

A borescope provides visual access to areas that are difficult or impossible to see directly. Inspectors can examine internal surfaces through an existing opening, bore, port, cavity, or access point without cutting the component apart or completely disassembling the surrounding equipment.

Burrs and unwanted material
Surface cracks and irregularities
Voids, cavities, and porosity
Incomplete material removal
Residual sand, debris, or FOD
Machining or assembly damage
Obstructions inside passages

A borescope gives the inspector a way to reach internal areas visually while keeping the component intact. Some conditions may be found externally; others are only visible from inside a narrow channel, drilled hole, complex cavity, or enclosed area.

Remote visual inspection

What is a borescope inspection?

A borescope is an instrument for viewing spaces that cannot be inspected directly.

01 · REACH

Place the probe through an access point

Depending on the application, the instrument may use a rigid optical probe, a flexible insertion tube, or a video camera near the probe tip.

02 · VIEW

Examine internal surfaces

The inspector moves or rotates the probe to examine the area. Video borescopes can show a live image on a monitor.

03 · RECORD

Keep a visual record

On supported systems, recorded images or video can support documentation, quality records, customer reports, or later review.

04 · DECIDE

Use the view in context

Visual findings help inform inspection and maintenance decisions; they do not replace other tests where required.

Casting inspection applications

Where borescopes fit in a component’s life cycle.

Remote visual inspection can support quality control, machining checks, assembly work, troubleshooting, and preventive maintenance.

01 · AFTER CASTING

Quality control

Inspect difficult internal areas before a component moves to the next production stage or ships to a customer. Finding visible irregularities early may allow corrective action before more work is added.

02 · AFTER MACHINING

Check internal features

Inspect drilled passages and machined features for burrs, debris, surface damage, or incomplete finishing after drilling, milling, grinding, or other operations.

03 · AFTER ASSEMBLY

Verify positioning and clearances

Once a casting is part of a larger machine, a borescope can help view component positioning, internal clearances, or areas around assembled parts without extensive disassembly.

04 · TROUBLESHOOTING

Look for visible causes

When equipment shows unusual vibration, reduced performance, contamination, or another operating problem, a visual inspection may reveal damage, debris, obstructions, or abnormal surface conditions.

05 · PREVENTIVE MAINTENANCE

Compare recorded inspections

Images from scheduled inspection intervals can help maintenance teams document visible changes over time.

Choose the viewing method

Rigid or flexible borescope?

There is no single configuration for every casting. The right instrument depends largely on the geometry of the inspection path.

RIGID OPTICAL PROBE

For straight access paths

A rigid borescope uses a straight probe and optical system. It can suit direct access and offers a choice of probe diameters, lengths, and directions of view.

Straight drilled holes
Short internal cavities
Cylindrical passages
Predictable access points
Applications where optical image detail matters

The main limitation is that a rigid probe cannot navigate around bends.

FLEXIBLE VIDEO PROBE

For curved and complex paths

Flexible borescopes and videoscopes can pass through curved passages or around internal obstacles. Some systems have an articulating tip that the operator can steer after insertion.

Curved internal channels
Large or complex castings
Indirect access
Deeper inspection points
Routes with bends or several surfaces to view

Tip control can help inspect more than one surface from a suitable access point.

Inspection systems to compare.

Compare these product families against the access path, required view, and documentation needs. Confirm exact model specifications and availability before ordering.

Rigid Borescope

Rigid optical system to consider for a suitable straight access path.

View product →

VOYAGER M40 Videoscope

Flexible camera system to compare when the inspection route or recording needs call for video.

View product →

MICRON USB Micro Borescope

Small-diameter option to discuss when conventional probes cannot fit the access opening.

View product →

Access comes first

Why probe diameter matters.

Probe diameter is often the first physical limit in casting inspection.

If the smallest opening is 4 mm, a 6 mm probe cannot reach the inspection area. Measure the narrowest point the probe must pass through, not only the initial access hole.

Very small inspection openings may require a micro borescope. FIBERSCOPE lists small-diameter configurations for applications where conventional industrial probes cannot enter the inspection area.

The smallest possible probe is not always necessary. Choose one that fits the route while providing the image quality, durability, illumination, and handling characteristics required for the job.

Light, detail, and records

Illumination and resolution shape what you can see.

The inside of a metal casting is usually dark, and reflective surfaces can make lighting difficult to balance.

ILLUMINATION

Balance detail and glare

Too little light can hide surface details. Too much reflected light can create glare, particularly on machined or polished metal. Adjustable illumination lets inspectors adapt brightness as distance and surface conditions change.

IMAGE RESOLUTION

Capture the detail that matters

A clear image can make an inspection easier and create a visual record when images or video are recorded. More subtle surface conditions call for careful attention to image detail and lighting.

Lighting and image detail may be particularly important when examining fine cracks, small burrs, deposits, edge damage, pitting, or contamination. Compare the view against the inspection question and the actual target.

Sample inspection images · click to enlarge

Rigid Borescope Spring Section Snapshot

Probe Ø from 2.7 mm (0.1 in) and up; working length up to 600 mm (23.6 in); direction of view: 0°, 30°, 70°, 90°, or 110°.

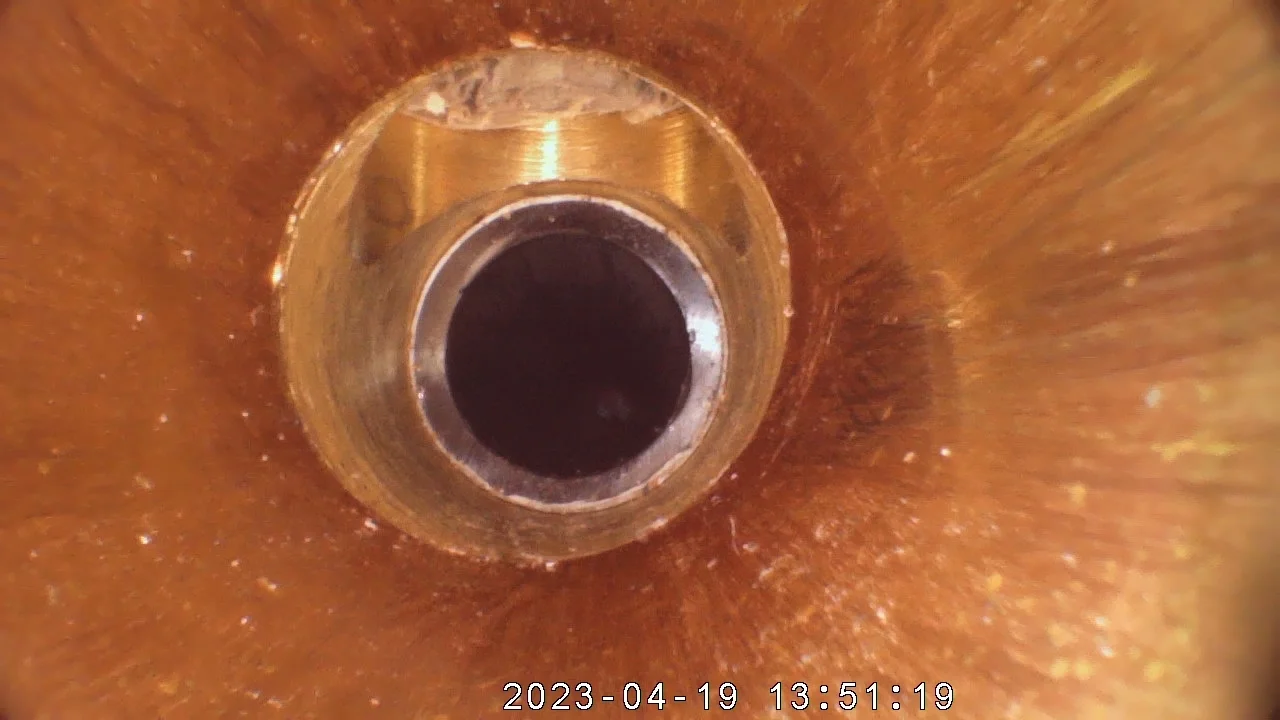

VOYAGER C40 Borescope Snapshot

Working length up to 7 m (22.9 ft); diameter 1–6 mm (0.039–0.23 in); 360° articulation, 180° in each direction.

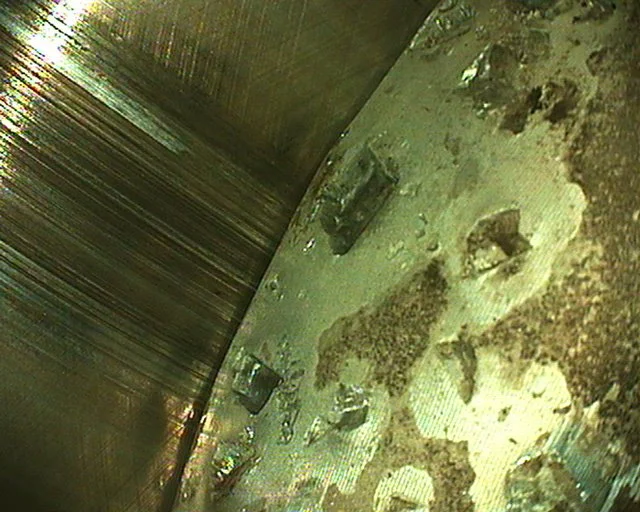

IRIS DVRx Videoscope Snapshot

Durable tungsten-braided probe; 3–8 mm (0.118–0.314 in) diameter; high-resolution camera integrated in a short rigid distal end.

These example specifications were supplied with the image references. Verify the current model and configuration before ordering.

Control and documentation

Articulation can help inspect beyond the straight-ahead view.

A standard camera probe shows the area within its field of view. An articulating tip gives the operator more control over which internal surfaces to examine.

TIP CONTROL

Scan walls and transitions

The operator can bend the distal tip to look at walls, corners, transitions, and side surfaces. Some industrial videoscopes provide multidirectional articulation so the inspector can scan a cavity instead of only looking forward.

RECORD KEEPING

Share what the inspection found

Captured images and video can support quality assurance, supplier and customer communication, maintenance records, comparison over time, inspector training, or review with another specialist.

Keep the inspection context with the image. Component ID, inspection location, date, and inspector information make later review and comparison more useful.

Inspection videos

USB Camera with Rigid Borescope | Metal Casting Inspection

IRIS DVRx Videoscope 4mm | Video Capture Sample

Choosing equipment

Define the inspection before comparing models.

Match the instrument to the actual geometry and conditions of the component.

01 · OPENING

What is the smallest opening?

Measure the narrowest point the probe must pass through, not only the entry port.

02 · WORKING LENGTH

How far is the target?

Choose enough working length to reach the inspection point while leaving probe available for comfortable handling.

03 · ROUTE

Is the path straight or curved?

Straight access may allow a rigid scope; complex passages usually call for a flexible videoscope.

04 · CONTROL

Do you need tip articulation?

Articulation can improve coverage when the target is around a corner or several surfaces need inspection.

05 · IMAGE DETAIL

How much detail must be visible?

Consider resolution and illumination when inspectors need to assess small surface features.

06 · RECORDING

Must the inspection be saved?

Image and video capture can support reports, quality documentation, and repeat inspections.

07 · ENVIRONMENT

What conditions will the probe encounter?

Consider temperature, oil, moisture, abrasive surfaces, and other job conditions before choosing.

Foundries and manufacturers

Benefits can extend beyond access.

A borescope helps make internal visual inspection possible; the workflow can also support production and maintenance decisions.

Less disassembly

Inspect through existing openings where possible instead of cutting a component apart or removing it from an assembly.

Direct visual access

Reach internal areas without preparing the whole component for direct visual examination.

Earlier findings

Visible issues found during manufacturing may be addressed before further machining, assembly, or shipping adds work.

Better records

Digital images and video provide evidence of internal conditions and can create a repeatable inspection record.

More inspection coverage

Flexible probes, small-diameter cameras, and articulating tips can make otherwise inaccessible areas viewable.

Use methods together

Borescope inspection and other NDT methods.

A borescope is a visual inspection tool, not a replacement for every nondestructive testing method.

Remote visual inspection can help identify visible surface conditions inside inaccessible areas. Other NDT methods may still be needed to detect subsurface defects, measure material properties, or verify conditions that cannot be identified visually.

In many quality programs, borescope inspection works alongside other testing methods rather than replacing them.

A practical inspection process

Use a consistent procedure.

A repeatable approach helps make inspection records easier to understand and compare.

01 · PREPARE

Check the probe and lens

Verify that probe diameter and working length suit the job, and make sure the lens is clean.

02 · INSERT

Protect the equipment and part

Insert the probe carefully to avoid damaging the instrument or component.

03 · EXAMINE

Scan the target systematically

Adjust illumination, orientation, and articulation as needed. Examine important surfaces methodically rather than randomly.

04 · DOCUMENT

Capture useful views

If you find a possible defect, images from several positions may provide better context than one frame.

05 · LABEL

Keep the record traceable

Label files with relevant details such as component ID, inspection location, date, and inspector.

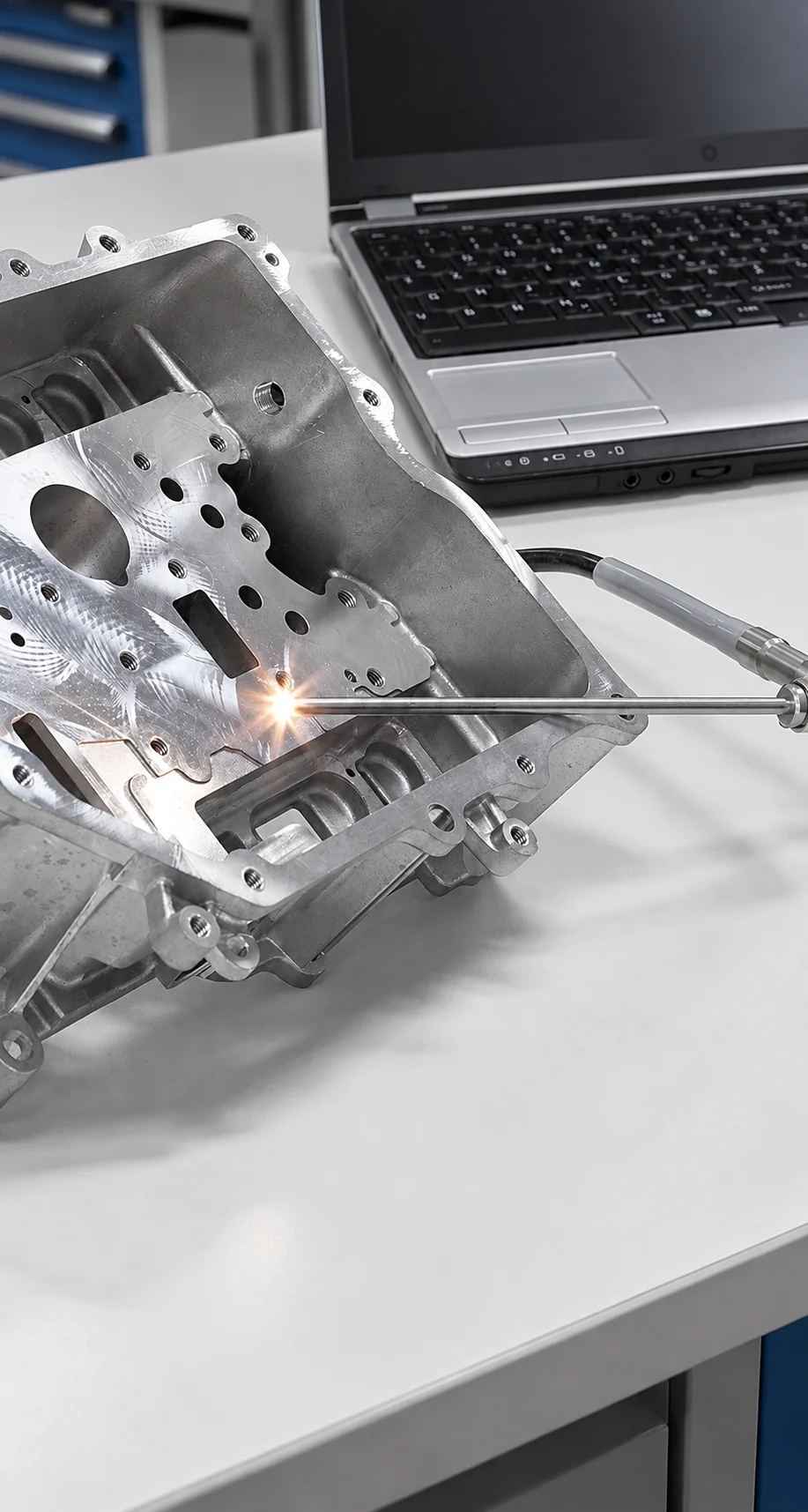

Practical borescope inspection of a metal casting

Metal casting borescope FAQ

Common questions about casting inspection.

Quick answers on probe fit, scope type, and what a visual inspection can establish.

What is borescope inspection in metal casting?

It is remote visual inspection of internal casting surfaces through a suitable opening using a rigid or flexible optical probe. It can document visible conditions along the probe’s accessible route; it does not establish conditions outside the view.

How do I choose a borescope for a metal casting?

Start with the narrowest opening and the full access route, then compare working length, bends, viewing direction or articulation, lighting, image detail, and whether the inspection must be recorded.

Should I use a rigid borescope or a flexible videoscope?

A rigid borescope may fit a straight access path. A flexible videoscope may be more suitable when the route bends or when a live display and image or video capture are needed. Confirm the exact configuration against the component geometry.

Can a borescope replace other NDT methods?

No. A borescope provides visual evidence of accessible surfaces. Use other inspection or NDT methods when the question requires information beyond what can be seen in the camera view.

What casting defects can a borescope show?

It may show visible surface conditions such as debris, burrs, irregularities, or damage when they are within reach and the image is clear. A qualified inspector should interpret findings, and additional testing may be needed to establish cause or extent.

Match the instrument to the component

Select for the actual inspection geometry.

Metal castings range from small precision parts to large industrial housings, so borescope requirements vary.

Some jobs suit a small rigid optical borescope. Others require a long flexible videoscope with tip articulation. Restricted openings may call for a micro borescope. The important point is to match the instrument to the component, access path, and inspection question.

FIBERSCOPE offers rigid borescopes, flexible VOYAGER videoscopes, and the MICRON USB Micro Borescope among the inspection-system options shown above. Confirm the current model’s specifications and suitability for your application.

Need help matching a borescope to a casting? Share the smallest access opening, working distance, path geometry, viewing direction, environmental conditions, and documentation needs with a FIBERSCOPE specialist.

Metal casting quality control

See the internal surface while the component stays intact.

Borescope inspection gives manufacturers, quality teams, and maintenance technicians a practical way to view hidden areas without destructive examination or unnecessary disassembly.

Choose probe diameter, working length, viewing direction, illumination, image detail, and articulation for the inspection path. A properly selected borescope can support production quality control and ongoing equipment maintenance with useful visual documentation.

FIBERSCOPE inspection support

Find a scope for the casting geometry.

Tell a FIBERSCOPE specialist about the access opening, working distance, route, target surface, job conditions, and whether you need saved images or video. They can help compare suitable system configurations.
